DLB T20 800H

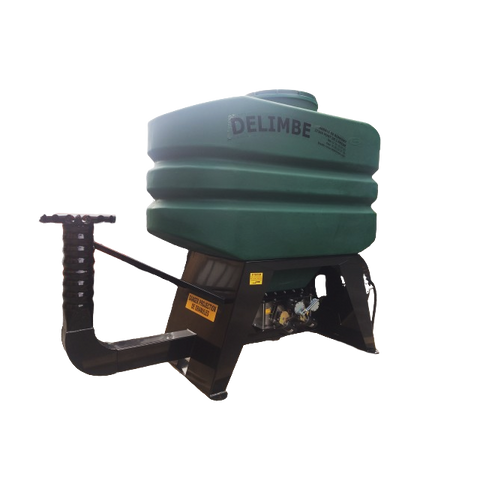

Delimbe DLB T20 800H Air Seeder
is a versatile 12-volt air seeder with a hydraulic blower fan, optimized for efficient small seed distribution over widths of up to 40 feet.

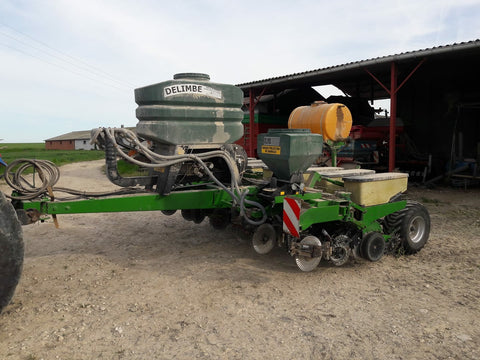

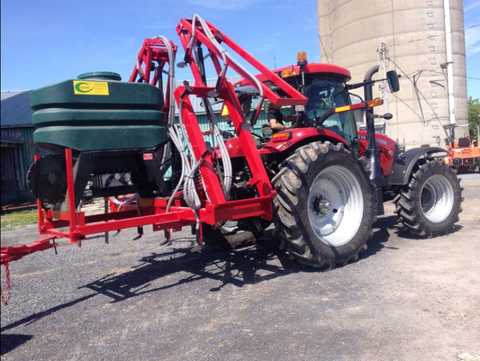

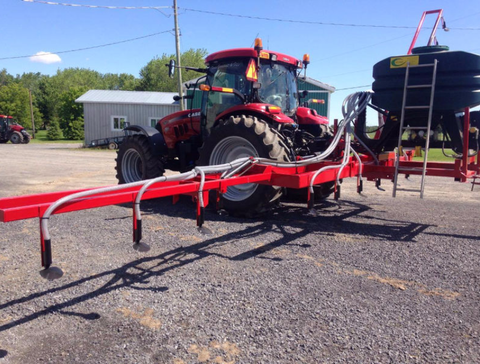

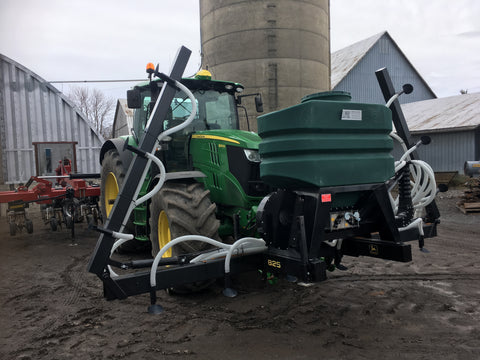

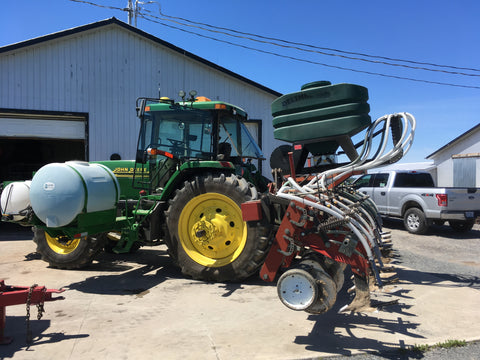

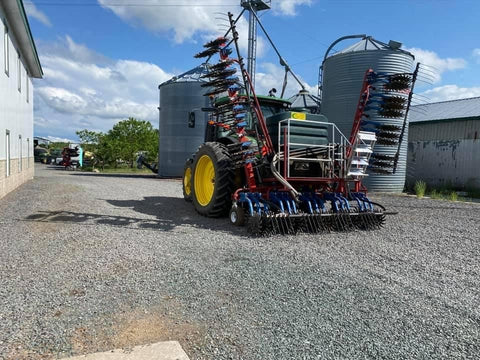

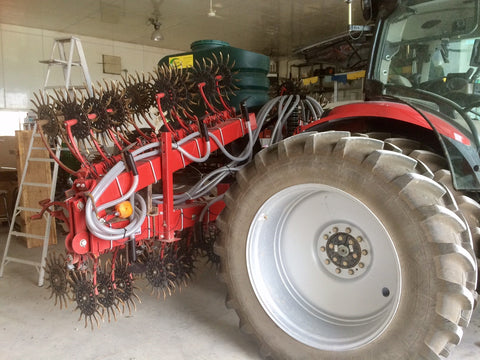

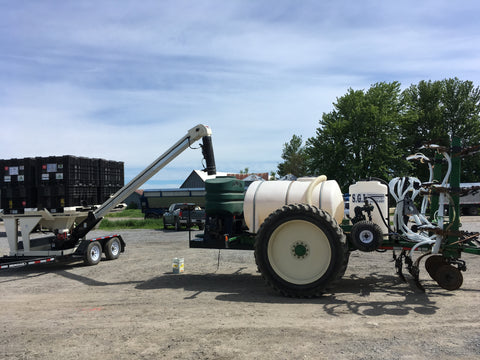

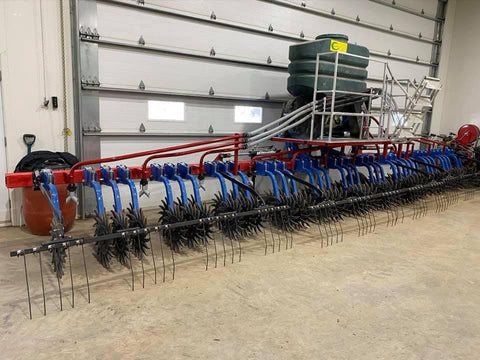

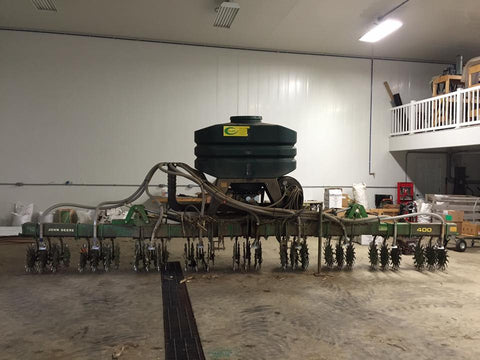

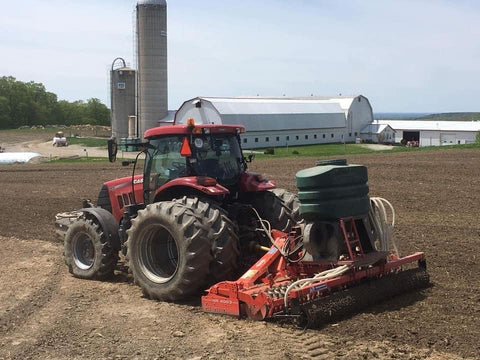

- Compatible with various tillage tools, such as weed harrows, power harrows, row crop cultivators, rotary hoes, cereal drills and more.

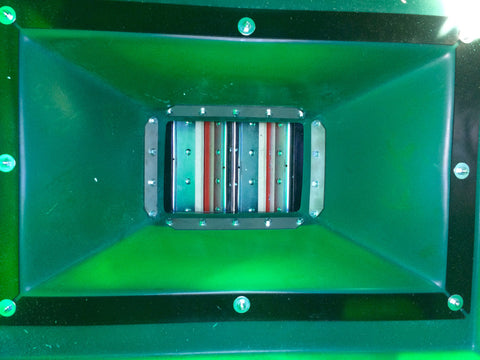

- Precision seed placement: by an electrically regulated seed metering shaft that delivers seed into the air channel. Seeds are propelled by an hydraulic fan through flexible hoses to dispersion plates, ensuring even distribution close to the ground, even in windy conditions.
Standard kit includes:

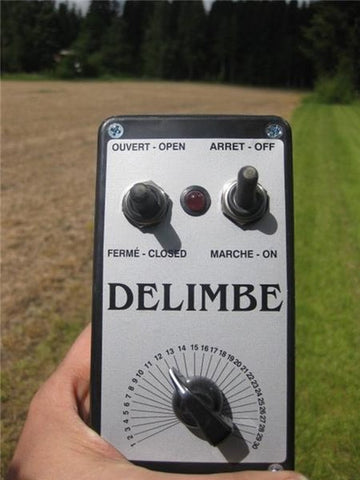

- Control Box: Features an On/Off switch and a speed adjustment knob for the seed metering shaft, enabling precise and efficient operation.
-

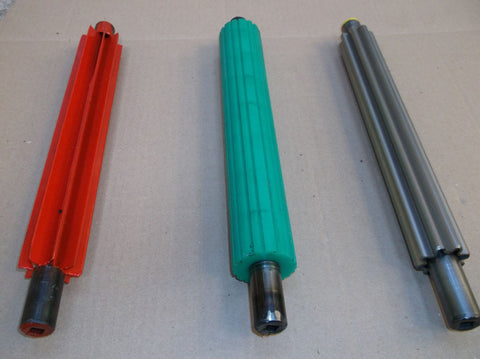

Six seed metering shafts:
- 2x Green: Suitable for small seeds such as alfalfa, mustard, radish, and clover.
- 2x Yellow: Designed for medium-sized seeds as well as small seeds with higher application rates.
-
2x Red: Ideal for light seeds such as fescue, brome, ryegrass, and cereals.
- Operator manual: Comprehensive guide covering setup, calibration, and operation.
- 12V Three-pin female Euro connector: Additional reliable power connection included for in cab installation.
- Includes: 12 feet of flexible hydraulic hose
Optional Variable Rate Controller:

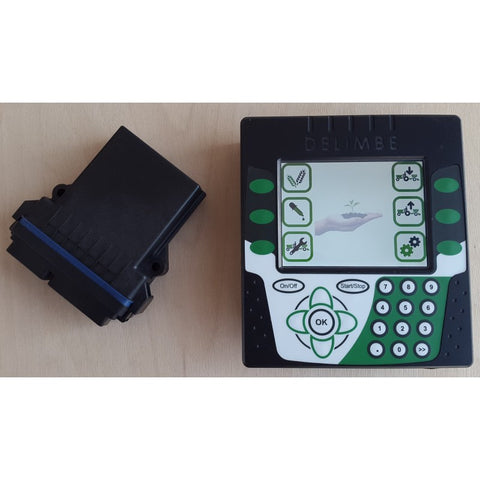

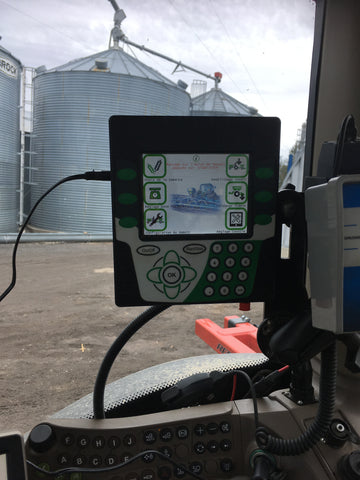

- Variable Rate Control Monitor equipped with a GPS speed sensor: Automatically and precisely adjusts the seeding rate based on the tool's forward speed.
- 4.5" Color display screen: Intuitive icons facilitate swift and efficient setup.
- 15-seed library: Provides pre-set options including past calibrations.
- Acreage tracking: Keeps a record of the seeded area for better management.
- Improved calibration function: Precise calibration in a two step process by collecting seeds, weighing them and inserting collected weight values.
Technical Specifications
- Tank Capacity: 800 liters (23 bushels)
- Number of seeding outlets: 16
- Empty Weight: 270 lbs
- Maximum Seeding Width: 40 feet
- Width: 27 inches
- Height: 64 inches
- Tank Length: 64 inches
- Total Length: 84 inches
- Hose Diameter: 40 mm
- Power Source: 12 volts + hydraulic
- Hydraulic Fan Requirements: 0 to 5 gallons per minute and a free flow oil return
- Made in France
