DLB T20 400H

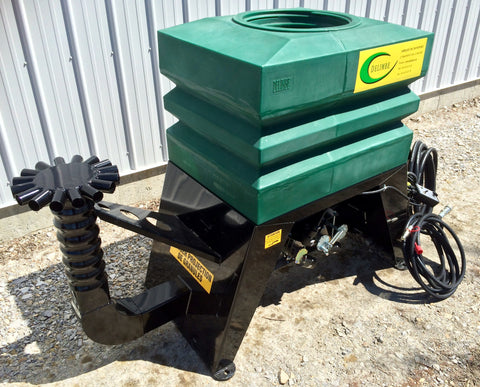

Delimbe DLB T20 400H Air Seeder
is a multi-purpose 12-volt air seeder with a hydraulic blower fan for distributing small seeds over widths of up to 40 feet. It offers precision and flexibility for various seeding needs.

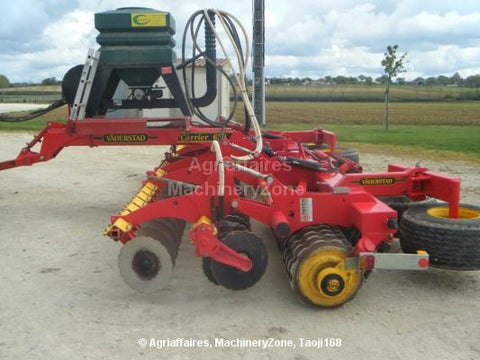

- Compatible with various tillage tools, such as weed harrows, power harrows, row crop cultivators, rotary hoes, atv's, cereal drills and more.
- Precision seed placement: by an electrically regulated seed metering shaft that delivers seed into the air channel. Seeds are propelled by an hydraulic fan through flexible hoses to dispersion plates, ensuring even distribution close to the ground, even in windy conditions.
Standard kit includes:

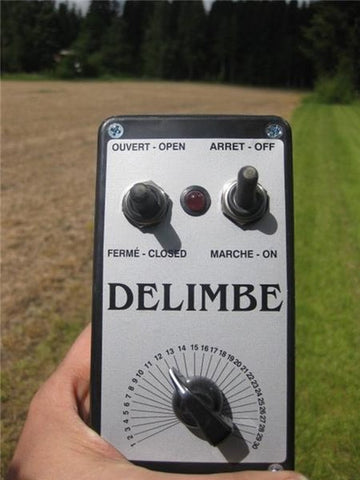

- Control Box: Features an On/Off switch and a speed adjustment knob for the seed metering shaft, enabling precise and efficient operation.
-
Six seed metering shafts:
- 2x Green: Suitable for small seeds such as alfalfa, mustard, radish, and clover.
- 2x Yellow: Designed for medium-sized seeds as well as small seeds with higher application rates.
-
2x Red: Ideal for light seeds such as fescue, brome, ryegrass, and cereals.
- Operator manual: Comprehensive guide covering setup, calibration, and operation.
- 12V Three-pin female Euro connector: Additional reliable power connection included for in cab installation.
- Includes: 12 feet of flexible hydraulic hose

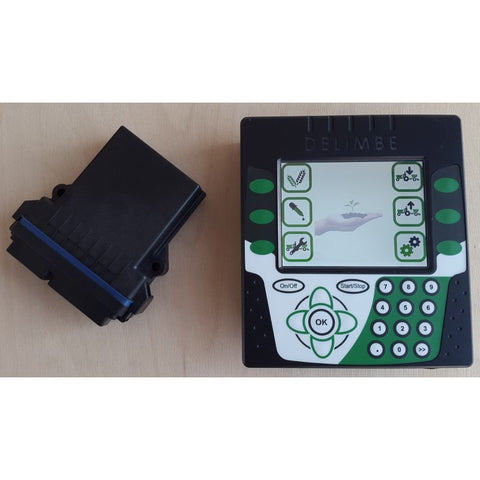

Optional Variable Rate Controller:
- Variable Rate Control Monitor equipped with a GPS speed sensor: Automatically and precisely adjusts the seeding rate based on the tool's forward speed.
- 4.5" Color display screen: Intuitive icons facilitate swift and efficient setup.
- 15-seed library: Provides pre-set options including past calibrations.
- Acreage tracking: Keeps a record of the seeded area for better management.
- Improved calibration function: Precise calibration in a three step process by collecting seeds, weighing them and inserting collected weight values.
Technical Specifications
- Tank Capacity: 400 liters (11.5 bushels)
- Weight: 220 lbs (empty)
- Number of seeding outlets: 16
- Maximum Seeding Width: 40 feet
- Width: 27 inches (total)
- Height: 50 inches (total)
- Length: 35 inches (tank), 84 inches (total)
- Hose Diameter: 40 mm
- Power Source: 12 volts and hydraulic
- Hydraulic Fan Requirements: 0 to 5 gallons per minute and a free flow oil return
- Made in France
