DLB AS120E-20R

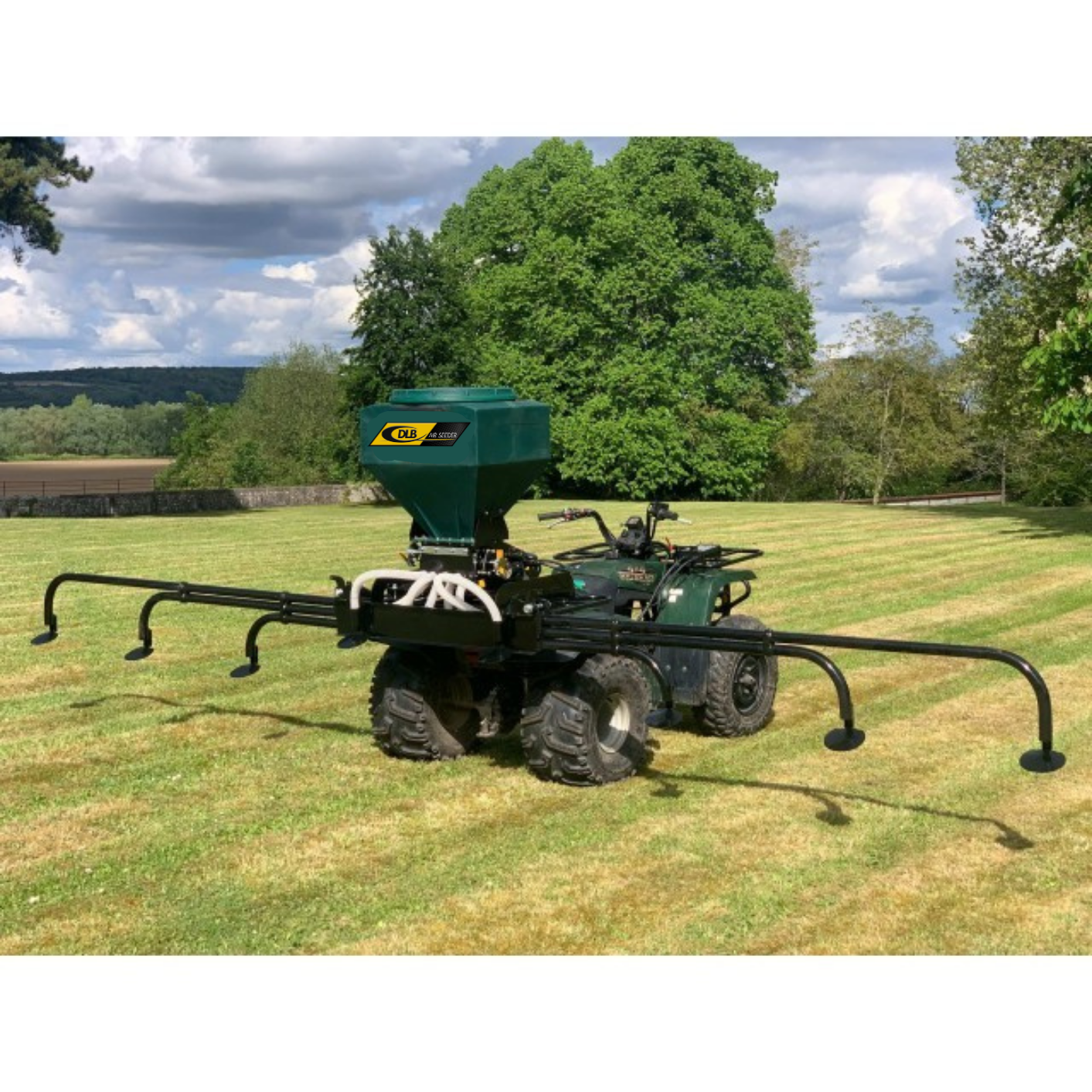

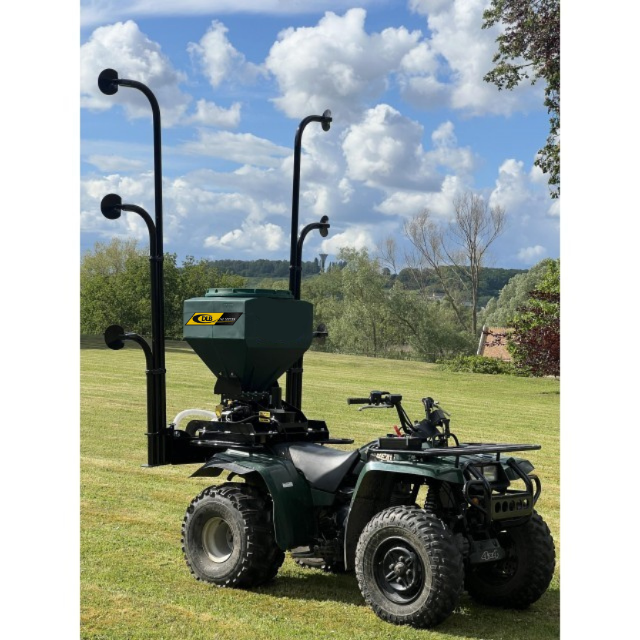

DLB Air Seeder AS120E equipped with a 20' foldable seeding ramp

A compact, atv mountable, versatile 12-volt air seeder designed for small seed distribution. Equipped with a lightweight, manually foldable 20' boom and dispersion plates.

Standard kit includes

• Control Box: Features an On/Off switch and a speed adjustment knob for the seed metering shaft, enabling precise and efficient operation.
• Three seed metering shafts:
  • Green: Suitable for small seeds such as alfalfa, mustard, radish, and clover.
  • Yellow: Designed for medium-sized seeds as well as small seeds with higher application rates.
  • Red: Ideal for light seeds such as fescue, brome, ryegrass, and cereals.

• Operator manual: Comprehensive guide covering setup, calibration, and operation.
• 12V Three-pin female Euro connector: Additional reliable power connection included for in cab installation.

Optional Variable Rate Controller

• Variable Rate Control Monitor equipped with a GPS speed sensor: Automatically and precisely adjusts the seeding rate based on the tool's forward speed.
• 4.5" Color display screen: Intuitive icons facilitate swift and efficient setup.
• 15-seed library: Provides pre-set options including past calibrations.
• Acreage tracking: Keeps a record of the seeded area for better management.
• Improved calibration function: Precise calibration in a three step process by collecting seeds, weighing them and inserting collected weight values.

Technical Specifications

• Tank Capacity: 120 liters (3.40 bushels).
• Number of seeding outlets: 8
• Empty Weight: 188 Lbs

• Width: 23''
• Height: 31''
• Depth: 24''
• Blower Pipe: 25mm diameter.
• Power Supply: 12-volt
• Made in France
